General
Device Type

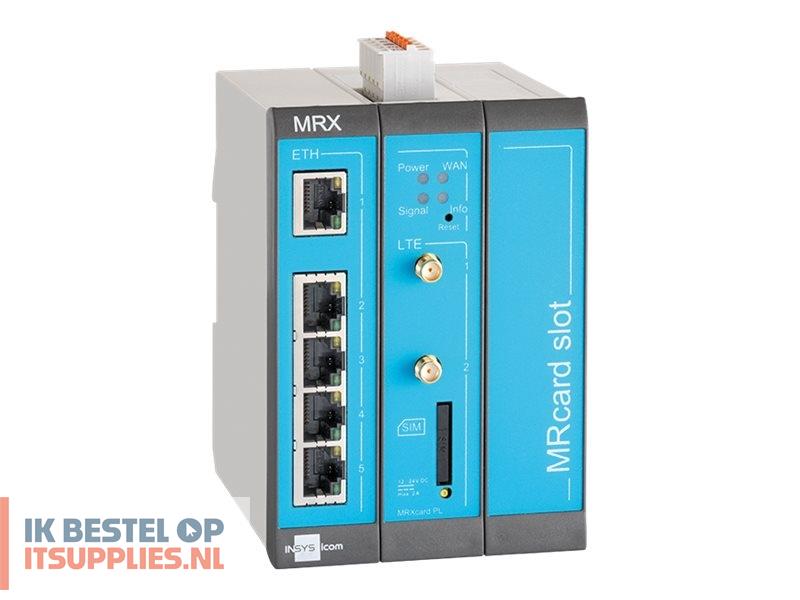

Router - 5-port switch (integrated)
Enclosure Type
DIN rail mountable - modular
Connectivity Technology
Wireless, wired
Data Link Protocol
Ethernet, Fast Ethernet
Network / Transport Protocol
PPTP, IPSec, PPPoE, PPPoA, FTP, DNS, DDNS, DHCPv6, DHCPv4
Routing Protocol
OSPF, RIP-1, RIP-2, BGP, static IP routing, GRE, RIPng
Remote Management Protocol
SNMP, Telnet, HTTP, HTTPS, SSH, CLI
Authentication Method
RADIUS
Features
VPN support, SNAT support, VLAN support, auto-uplink (auto MDI/MDI-X), E-mail alert, IP address filtering, half duplex mode, full duplex mode, firmware upgradable, MIMO technology, Dynamic Multipoint VPN (DMVPN), DHCP server, SMS alert, port forwarding, Stateful Packet Inspection Firewall (SPIF), NTP server, SNMP trap, DNS relay, DHCP client, NTP client, realtime clock, DNAT support, 1500V isolation, VLAN Tagging, IP forwarding support, VLAN trunking, DynDNS, PPTP server, OpenVPN client, OpenVPN server
Compliant Standards
EN 60950, IEC 60950, EN55024, IC, EN 61000-6-2, EN 61131-2, IP40, FCC Part 15 Class B, EN 60068-2-1, EN 55032 Class B, EN 60068-2-27, EN 60068-2-6, EN 60068-2-14, IEC 62368, EN 62368, EN 60068-2-2, EN 60068-30
Status Indicators
Power, WAN, signal
Communications
Type
Wireless cellular modem
Mobile Communication Protocol
GPRS, UMTS, EDGE, HSPA, HSPA+, LTE
Max Transfer Rate
100 Mbps
Internet of Things (IoT)
Internet of Things (IoT) Compatible
Yes
Expansion / Connectivity
Interfaces
5 x 10Base-T/100Base-TX - RJ-45 ¦ 2 x DI ¦ Antenna: 2 x SMA
Expansion Slots
3 (total) / 1 (free) x expansion slot ¦ 1 (total) / 1 (free) x Mini-SIM
Power
Voltage Required
DC 12 - 24 V
Power Consumption Operational
8 Watt
Software / System Requirements
Dimensions & Weight
Environmental Parameters
Min Operating Temperature
-25 °C
Max Operating Temperature
60 °C
Humidity Range Operating
0 - 95% (non-condensing)
