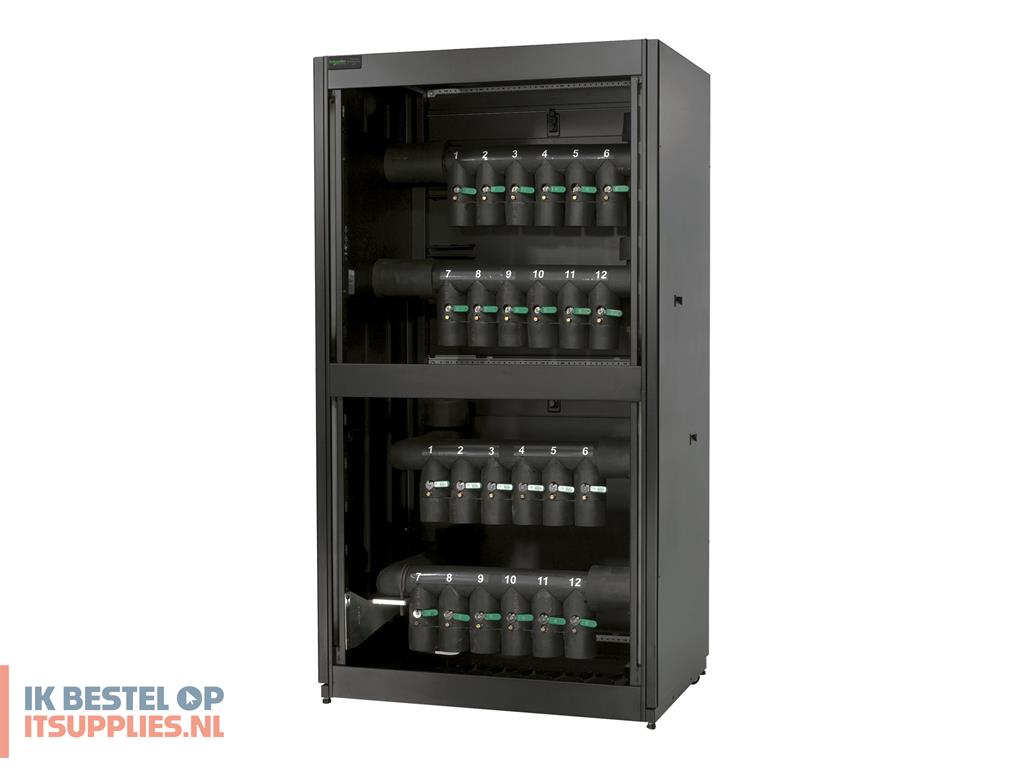

APC InRow Chilled Water Cooling 12 Circuit, Bottom/Top Mains, Bottom Distribution Piping

Productcode: ACFD12-B | EAN/UPC: 0731304256632

€ 16.384,24 excl.btw

APC InRow Chilled Water Cooling 12 Circuit, Bottom/Top Mains, Bottom Distribution Piping - Rack liquid cooling distribution unit - black - for P/N: ACRC100, ACRC103

Isolated cooling circuit
Front service access
Top and bottom chilled water connections
Coolant balancing
Predictable cooling
Dual A-B power inputs
Rack inlet control
Top and bottom chilled water connections
Active response controls
Variable speed fans
Row-based architecture
Modular design
Scaleable densities
Easy service access
Real-time capacity monitoring
Microprocessor controller
Building management system integration

Op voorraad: 0 stuk(s)

Levertijd:

Product:
APC InRow Chilled Water Cooling 12 Circuit, Bottom/Top Mains, Bottom Distribution Piping

€ 19824,93 incl. 21% btw € 16384,24excl. 21% btw

Winkelwagen Offerte

Stuur mij een notificatie bij voorraad

Omschrijving

APC InRow Chilled Water Cooling 12 Circuit, Bottom/Top Mains, Bottom Distribution Piping - Rack liquid cooling distribution unit - black - for P/N: ACRC100, ACRC103

Product features

Isolated cooling circuit
A separate, isolated section which houses all cooling components minimizes the risk of water contacting installed IT equipment in the unlikely event of a leak.
Front service access
The system has full service, front access for routine servicing of components. Front access also narrows the footprint of the system making it possible for units to be placed side by side.
Top and bottom chilled water connections
It allows chilled water to be connected from the top, if routing from overhead, or bottom, if on a raised floor.
Coolant balancing
It provides a central point for fluid balancing.
Predictable cooling
Placing the unit in the row of racks moves the source of cooling closer to the heat load. This eliminates air mixing and provides a predictable cooling architecture.
Dual A-B power inputs
Draws power from the UPS for power protection with dual feeds for redundancy.
Rack inlet control
Rack inlet control guarantees inlet temperature to IT equipment.
Top and bottom chilled water connections
It allows chilled water to be connected from the top, if routing from overhead, or bottom, if on a raised floor.
Active response controls
Monitors and actively adjusts cooling capacity to ensure proper server inlet temperatures. Through the microprocessor controller, visibility into the operation and health of the unit is provided.
Variable speed fans
Variable speed fans reduce energy consumption during off-peak cooling periods.
Row-based architecture
Captures hot exhaust air directly from the IT equipment, thereby increasing the unit's sensible cooling capacity over traditional cooling architectures.
Modular design
Modular design provides scalable solutions to add cooling as demand increases.
Scaleable densities
It allows for higher densities to be achieved by integrating containment with room, row and rack cooling system architectures.
Casters
It provides flexibility to move the unit to wherever cooling is required.
Easy service access
It allows for all serviceable components to be replaced/maintained by easily accessible panels/doors.
Real-time capacity monitoring
Real-time display of current and available cooling.
Microprocessor controller
It provides proactive control and real-time monitoring via a four line, eighty character, alphanumeric display.
Building management system integration
Send alarms and data points allowing you to manage critical building infrastructure from a single system.

Specificaties

General

Product Type

Rack liquid cooling distribution unit

Width

107 cm

Depth

75 cm

Height

199.1 cm

Weight

269.56 kg

Shipping Dimensions (WxDxH) / Weight

121.9 cm x 88.9 cm x 215.9 cm / 314.56 kg

Colour

Black

Manufacturer Warranty

Service & Support

Limited warranty: - 1 year

Compatibility Information

Designed For

P/N: ACRC100, ACRC103

This data is supplied by 1WorldSync and matched through an automated process. Truedata is not responsible for errors in this data.
