General
Device Type

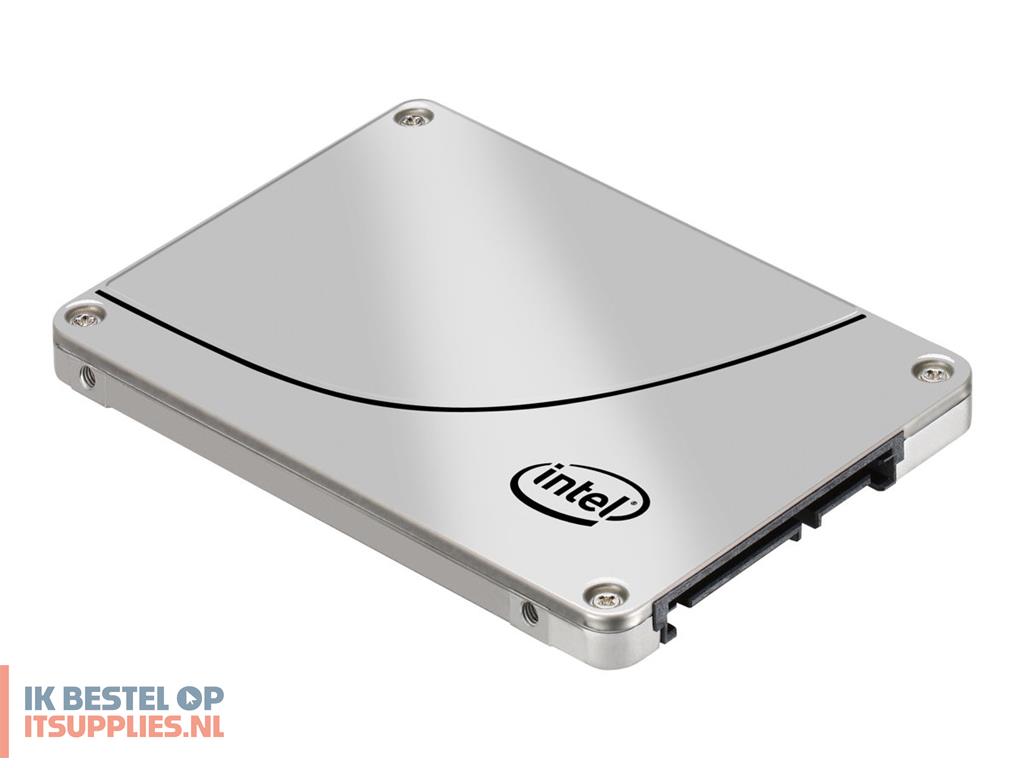

Solid state drive - internal
Encryption Algorithm
256-bit AES
NAND Flash Memory Type
16nm multi-level cell (MLC)
Features
Native Command Queuing (NCQ), TRIM support, Temperature Monitoring and Logging, Enhanced Power Loss Data Protection, Thermal throttling, End-to-end data protection, Windows WHCK certified, Hot-Plug Support, S.M.A.R.T.
Performance
Drive Transfer Rate
600 MBps (external)
Internal Data Rate
500 MBps (read) / 460 MBps (write)
4KB Random Read
67000 IOPS
4KB Random Write
15300 IOPS
Reliability
Non-Recoverable Errors
1 per 10^17
Expansion & Connectivity
Interfaces
1 x SATA 6 Gb/s - 7 pin Serial ATA
Power
Power Consumption
4.74 Watt (active)
0.7 Watt (idle)
Software & System Requirements
OS Required
Microsoft Windows Server 2003 R2 Enterprise x64 Edition SP2, Microsoft Windows Server 2008 R2 SP1, Microsoft Windows Server 2008 (32/64-bits) SP2, Microsoft Windows Server 2012, Microsoft Windows Server 2012 R2, Microsoft Windows 7 / 8 / 8.1, Red Hat Enterprise Linux 5.5 - 7.0, CentOS 6.3 (64-bit), CentOS 5.7 (64-bit)
Miscellaneous
Compliant Standards
UL, VCCI, C-Tick, BSMI, FCC Part 15 B, RoHS, UL 60950-1 Second Edition, KCC, WEEE, EN 60950-1 Second Edition, SATA-IO, EN55024:1998, CAN/CSA-CEI/IEC CISPR 22:02
Manufacturer Warranty
Service & Support
Limited warranty - 5 years
Environmental Parameters
Min Operating Temperature
0 °C
Max Operating Temperature
70 °C
Humidity Range Operating
5 - 95%
Shock Tolerance (operating)
1000 g @ 0.5 ms
Shock Tolerance (non-operating)
1000 g @ 0.5 ms
Vibration Tolerance (operating)
2.17 g @ 5-700 Hz
Vibration Tolerance (non-operating)
3.13 g @ 5-800 Hz
