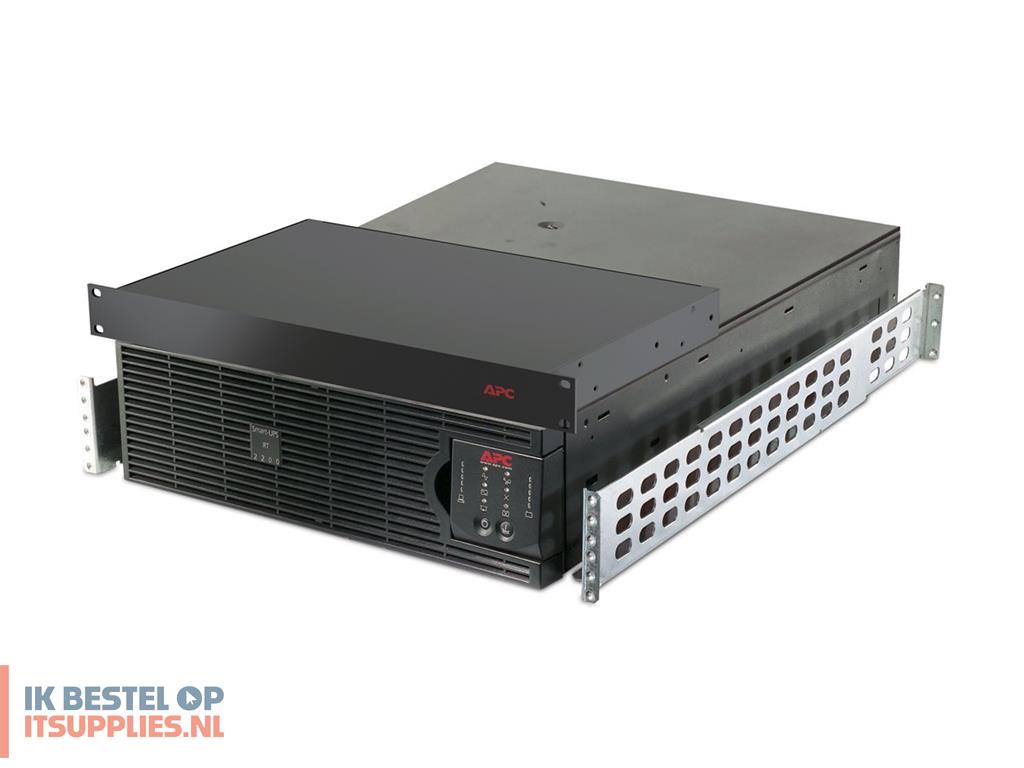

APC Smart-UPS RT 2200 Marine - UPS

Productcode: SURTD2200XLIM | EAN/UPC: 0731304286929

€ 2.408,23 excl.btw

APC Smart-UPS RT 2200 Marine - UPS - AC 220/230/240 V - 1.54 kW - 2200 VA - RS-232 - output connectors: 10 - 3U - black

Remote UPS management - enable management of your UPS by connecting it directly to the network
Advanced electrical features - excellent power conditioning, very low harmonic distortion through IGBT rectifier, input power factor correction, and high power efficiency
Intuitive monitoring - step by step navigation and menu screens for critical system information and data
Predictive replace battery - dynamically provides the month and year when battery replacement is recommended to aide in long term maintenance planning
Fast battery charging capability - allows for reduced battery recharge time, prevents disturbances on the distribution system by correcting the power factor, protects the battery against damage caused by deep discharge and provides backfeed protection
Pure sine wave output on battery - simulates utility power to provide the highest degree of compatibility for active PFC (power factor corrected) servers and sensitive electronics
Single switched outlet group - single outlet group that may be controlled separately from the UPS for discrete reboot of hung devices, sequenced on/off and non-critical load shedding
Wide input voltage range - designed for harsh electrical environments to save battery life
Sine wave output - eliminates humming and heat generated when powering tubelights and fans
Intelligent battery charging - microprocessor controlled, 3-stage regulated charging ensures the fastest recharge times without decreasing battery life
Excellent footprint - small UPS footprint provides maximum usage of valuable electrical room floorspace
High online efficiency - reduces utlility costs, generates less heat
LED indicators - provide easy-to-read status of the unit and utility power conditions
Overload protection - safeguards unit from damage by automatically turning it off in the event of a short circuit or overload
Hot-swappable batteries - ensures clean, uninterrupted power to protected equipment while batteries are being replaced
Generator compatible - ensures clean, uninterrupted power to protected equipment when generator power is used
Field-replaceable power distribution panel - ensures compatibility with equipment that has different plug types
Automatic self-test - periodic battery self-test ensures early detection of a battery that needs to be replaced
Automatic internal bypass - supplies utility power to the connected loads in the event of a UPS power overload or fault
Audible alarms - provides notification of changing utility power and UPS power conditions
User-replaceable batteries - increases availability by allowing a trained user to perform upgrades and replacements of the batteries reducing Mean Time to Repair (MTTR)
Serial connectivity - provides management of the UPS via a serial port
Temperature-compensated battery charging - prolongs battery life by regulating the charge voltage according to battery temperature
Scalable runtime - allows additional run time to be quickly added as needed
Intelligent battery management - maximizes battery performance, life, and reliability through intelligent, precision charging
Safety-agency approved - ensures the product has been tested and approved to work safely with the connected service provider equipment and within the specified environment
Programmable frequency - ensures compatibility with different input frequencies
Power conditioning - protects connected loads from surges, spikes, lightning, and other power disturbances
Network manageable - provides remote power management of the UPS over the network
Frequency and voltage regulation - gives higher application availability by correcting poor frequency and voltage conditions without using the battery

Op voorraad: 1 stuk(s)

Levertijd:

Product:
APC Smart-UPS RT 2200 Marine - UPS

€ 2913,96 incl. 21% btw € 2408,23excl. 21% btw

Winkelwagen Offerte

Omschrijving

APC Smart-UPS RT 2200 Marine - UPS - AC 220/230/240 V - 1.54 kW - 2200 VA - RS-232 - output connectors: 10 - 3U - black

Product features

Remote UPS management
Enable management of your UPS by connecting it directly to the network.
Advanced electrical features
Excellent power conditioning, very low harmonic distortion through IGBT rectifier, input power factor correction, and high efficiency.
Intuitive monitoring
Step by step navigation and menu screens for critical system information and data. Information is easy to access and presented in a very intuitive way.
Predictive replace battery date
Dynamically provides the month and year when battery replacement is recommended to aide in long term maintenance planning.
Double conversion on-line topology
Guarantees a consistently high level of power quality. Any disturbances on the distribution waveform are regenerated via the zero transfer time AC to DC then DC to AC conversion process. The battery is only used as a back-up source.
Fast battery charging capability
Allows for reduced battery recharge time, prevents disturbances on the distribution system by correcting the power factor, protects the battery against damage caused by deep discharge and provides backfeed protection.
Pure sine wave output on battery
Simulates utility power to provide the highest degree of compatibility for active PFC (power factor corrected) servers and sensitive electronics.
Single switched outlet group
Single outlet group that may be controlled separately from the UPS for discrete reboot of hung devices, sequenced on/off and non-critical load shedding.
Wide input voltage range
Designed for harsh electrical environments to save battery life.
Sine wave output
Eliminates humming and heat generated when powering tubelights and fans.
Intelligent battery charging
Microprocessor controlled, 3-stage regulated charging ensures the fastest recharge times without decreasing battery life.
Excellent footprint
Small UPS footprint provides maximum usage of valuable electrical room floorspace.
High online efficiency
Reduces utility costs, generates less heat.
LED indicators
Provide easy-to-read status of the unit and utility power conditions.
Overload protection
Safeguards unit from damage by automatically turning it off in the event of a short circuit or overload.
Hot-swappable batteries
Ensures clean, uninterrupted power to protected equipment while batteries are being replaced.
Generator compatible
Ensures clean, uninterrupted power to protected equipment when generator power is used.
Field-replaceable power distribution panel
Ensures compatibility with equipment that has different plug types.
Disconnected battery notification
Warns when a battery is not available to provide backup power.
Automatic self-test
Periodic battery self-test ensures early detection of a battery that needs to be replaced.
Automatic restart of loads after UPS shutdown
Automatically starts up the connected equipment upon the return of utility power.
Automatic internal bypass
Supplies utility power to the connected loads in the event of a UPS overload condition or fault.
Audible alarms
Provides notification of changing utility power and UPS conditions.
User-replaceable batteries
Increases availability by allowing a trained user to perform upgrades and replacements of the batteries reducing Mean Time to Repair (MTTR).
Serial connectivity
Provides management of the UPS via a serial port.
Temperature-compensated battery charging
Prolongs battery life by regulating the charge voltage according to battery temperature.
Scalable runtime
Allows additional run time to be quickly added as needed.
Intelligent battery management
Maximizes battery performance, life, and reliability through intelligent, precision charging.
Safety-agency approved
Ensures the product has been tested and approved to work safely with the connected service provider equipment and within the specified environment.
Programmable frequency
Ensures compatibility with different input frequencies.
Power conditioning
Protects connected loads from surges, spikes, lightning, and other power disturbances.
Network manageable
Provides remote management of the UPS over the network.
Frequency and voltage regulation
Gives higher application availability by correcting poor frequency and voltage conditions without using the battery.
Input power factor correction
Minimizes installation costs by enabling the use of smaller generators and cabling.
Predicative failure notification
Provides early-warning fault analysis ensuring proactive component replacement.
Front-access servicing
Simplifies installation and maintenance while minimizing space requirements.

Specificaties

General

Device Type

UPS - external

Battery Enclosure Type

Plug-in module

Height (Rack Units)

Colour

Black

Power Device

UPS Technology

On-line

Input Voltage

AC 220/230/240 V

Input Voltage Range

AC 180 - 280 V

Frequency Provided

50/60 Hz

Frequency Required

50/60 Hz

Power Output Connectors Details

8 x power IEC 60320 C13
2 x power IEC 60320 C19

Output Voltage

AC 220/230/240 V ± 3% - 50/60 Hz

Power Capacity

1.54 kW / 2200 VA

Output Waveform

Sinewave

Surge Suppression

Yes

Surge Energy Rating

480 Joules

Battery

Quantity

Technology

Lead Acid

Run Time (Up To)

21 min at full load
48 min at half load

Recharge Time

2.5 hours

Networking

Remote Management Interface

RS-232

Expansion / Connectivity

Interfaces

1 x management (RS-232) - RJ-45
1 x EPO (emergency power off)

Expansion Slots

1 SmartSlot

Miscellaneous

Cables Included

Serial cable - external

Rack Mounting Kit

Included

Features

Audible alarm, emergency power off, internal bypass, LED indicators

Compliant Standards

EN 60950, EN 61000-3-2, UL 1449, EN55022 Class A, EN 50091-2, RoHS, EN 50091-1, REACH

Software / System Requirements

Software Included

Drivers & Utilities

Manufacturer Warranty

Service & Support

Limited warranty - 2 years

Environmental Parameters

Min Operating Temperature

0 °C

Max Operating Temperature

55 °C

Humidity Range Operating

0 - 95%

Sound Emission

55 dBA

Dimensions & Weight

Width

13 cm

Depth

66 cm

Height

43.2 cm

Weight

54.6 kg

Dimensions & Weight (Shipping)

Shipping Width

60.3 cm

Shipping Depth

98 cm

Shipping Height

34.7 cm

Shipping Weight

63.6 kg

This data is supplied by 1WorldSync and matched through an automated process. Truedata is not responsible for errors in this data.
