General
Device Type

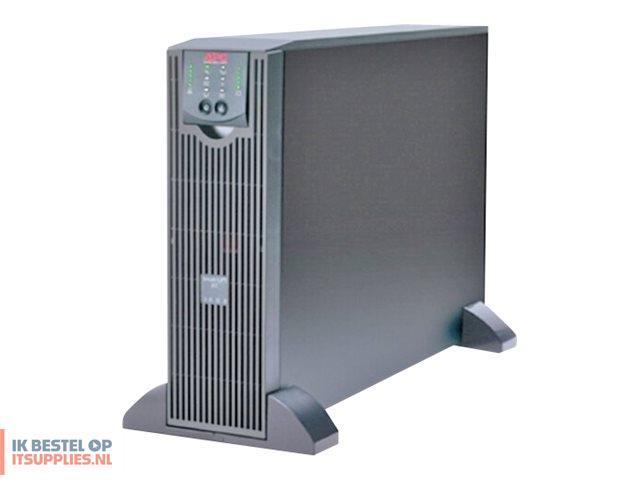

UPS - rack-mountable / external
Power Device
Input Voltage
AC 220/240 V
Input Voltage Range
AC 160 - 280 V
Frequency Provided
50/60 Hz
Frequency Required
40 - 70 Hz
Input Connectors
Power IEC 60320 C20, power BS 1363A
Power Output Connectors Details
8 x power IEC 60320 C13 ¦ 2 x power IEC 60320 C19 ¦ 3 x IEC jumper
Output Voltage
AC 220/230/240 V ± 3% - 50/60 Hz
Power Capacity
2100 Watt / 3000 VA
Surge Energy Rating
480 Joules
Circuit Protection
Circuit breaker
Efficiency
92% at 100% Load
Battery
Run Time (Up To)
12.9 min at full load ¦ 35 min at 1000 Watts
Networking
Remote Management Interface
Ethernet 10/100, RS-232, USB
Remote Management Protocol
SNMP 1, Telnet, SNMP 3, SNMP 2c, HTTP, HTTPS, SSH, SSH-2
Expansion / Connectivity
Interfaces
1 x management (RS-232) ¦ 1 x USB ¦ 1 x management (Ethernet) - RJ-45
Expansion Slots
1 (total) / 1 (free) x Intelligent Slot
Miscellaneous
Cables Included
Serial cable - external ¦ Power cable 2.4 m
Features
Hot-swappable battery, audible alarm, emergency power off, internal bypass, LED indicators, noise filtering, cold-start function, automatic self-test
Compliant Standards
CSA, VCCI, C-Tick, BSMI, GOST, EN 60950, EN 61000-3-2, JEON, UL 1449, UL 1778, VDE, EN 50091-2, RoHS, EN 50091-1, REACH
Software / System Requirements
Software Included
APC PowerChute
Manufacturer Warranty
Service & Support
Limited warranty - parts and labour - 2 years
Environmental Parameters
Min Operating Temperature
0 °C
Max Operating Temperature
40 °C
Humidity Range Operating
0 - 95%
