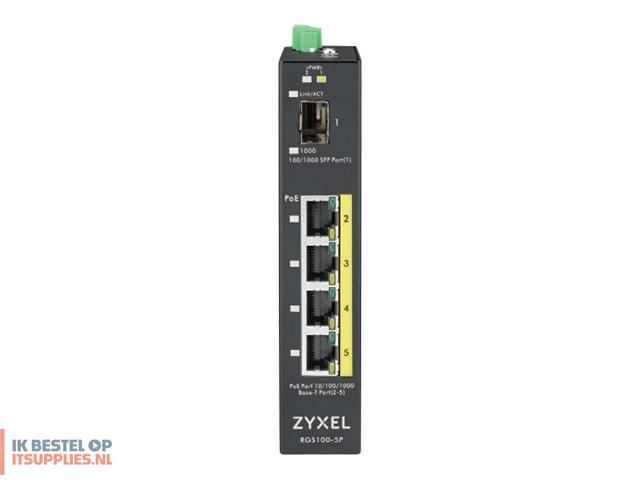

ZyXEL RGS100-5P - Switch - unmanaged

Productcode: RGS100-5P-ZZ0101F | EAN/UPC: 0760559123970

€ 350,64 excl.btw

Zyxel RGS100-5P - Switch - unmanaged - 4 x 10/100/1000 (PoE+) + 1 x Fast Ethernet/Gigabit SFP - rack-mountable, DIN rail mountable - PoE+ (120 W) - DC power

Wide-ranging operating temperature design from -40°C to 75°C
Fanless design and compact mechanism with IP30 standard
All PoE ports support PoE+ and high PoE power budget up to 120 W

Op voorraad: 0 stuk(s)

Levertijd:

Product:
ZyXEL RGS100-5P - Switch - unmanaged

€ 424,27 incl. 21% btw € 350,64excl. 21% btw

Winkelwagen Offerte

Stuur mij een notificatie bij voorraad

Omschrijving

Zyxel RGS100-5P - Switch - unmanaged - 4 x 10/100/1000 (PoE+) + 1 x Fast Ethernet/Gigabit SFP - rack-mountable, DIN rail mountable - PoE+ (120 W) - DC power

Product features

Rugged and reliable design for harsh environments
Designed with fanless and IP30 standard metal mechanism, the Zyxel RGS100-5P is able to to deliver excellent thermal controls and withstand dusty environments and can be installed on either a DIN rail or wall mount for efficient use of cabinet space. In addition, wide-ranging operating temperature tolerance allows RGS100-5P to be deployed across a spectrum of harsh environments. Equipped with dual DC power inputs, the RGS100-5P is capable of highavailability operation and resilience under the most demanding conditions. When switching is applied normally in outdoor settings, ESD (electrostatic discharge) and DC surge protection prevent the loss of business revenue and productivity due to damage or fatigue caused by power disturbances.
Trouble-free installation and easy extendibility
This rugged unmanaged PoE switch comes with four (4) 10/100/1000 Base-T copper PoE ports and one (1) 100/1000-Base-X SFP fiber interface. The switch also supports the 802.3at PoE plus standard, with each PoE port providing up to 30W of power to efficiently accommodate the most power-hungry devices. The fiber uplink can extend the network to long-distance nodes up to 40 km (43,744 yards) away for added flexibility.
Plug-and-Play deployments
The Zyxel RGS100-5P is able to negotiate the optimal data speed and activate duplex mode automatically with N-Way feature. It can also detect the type of connection to any Ethernet device with support for auto-MDI/MDI-X. Broadcast storm protection can easily be activated via DIP switch. Plug-and-play makes deploying the RGS100-5P hassle-free for any application or scenario.

Specificaties

General

Device Type

Switch - 5 ports - unmanaged

Enclosure Type

Rack-mountable, DIN rail mountable

Subtype

Gigabit Ethernet

Ports

4 x 10/100/1000 (PoE+) + 1 x Fast Ethernet/Gigabit SFP

Power Over Ethernet (PoE)

PoE+

PoE Budget

120 W

Performance

Switching capacity: 10 Gbps
Forwarding performance: 7.44 Mpps

MAC Address Table Size

2K entries

Jumbo Frame Support

9KB

Features

Flow control, auto-negotiation, auto-uplink (auto MDI/MDI-X), store and forward, Broadcast Storm Control, half duplex mode, full duplex mode, Multicast Storm Control, fanless, 256KB packet buffer, Class of Service (CoS), 8KV ESD Protector, Storm Control, Back Pressure Support, 2 KV ligthning surge protection

Compliant Standards

IEEE 802.3, IEEE 802.3u, IEEE 802.3z, IEEE 802.3ab, IEEE 802.1p, IEEE 802.3af, IEEE 802.3x, IEEE 802.3at

Expansion / Connectivity

Interfaces

4 x 1000Base-T RJ-45 PoE+
1 x SFP

Power

Power Device

Internal power supply

Installed Qty

2 (installed) / 2 (max)

Voltage Required

DC 12 - 58 V

Power Consumption Operational

125 Watt

Miscellaneous

Included Accessories

DIN-rail mounting kit

Rack Mounting Kit

Included

MTBF

568,430 hours

Compliant Standards

IP30

Localisation

Europe

Dimensions & Weight

Width

2.91 cm

Depth

10.73 cm

Height

13.9 cm

Weight

500 g

Environmental Parameters

Min Operating Temperature

-40 °C

Max Operating Temperature

75 °C

Humidity Range Operating

5 - 95% (non-condensing)

Min Storage Temperature

-40 °C

Max Storage Temperature

85 °C

Humidity Range Storage

5 - 90% (non-condensing)

This data is supplied by 1WorldSync and matched through an automated process. Truedata is not responsible for errors in this data.
