General
Device Type

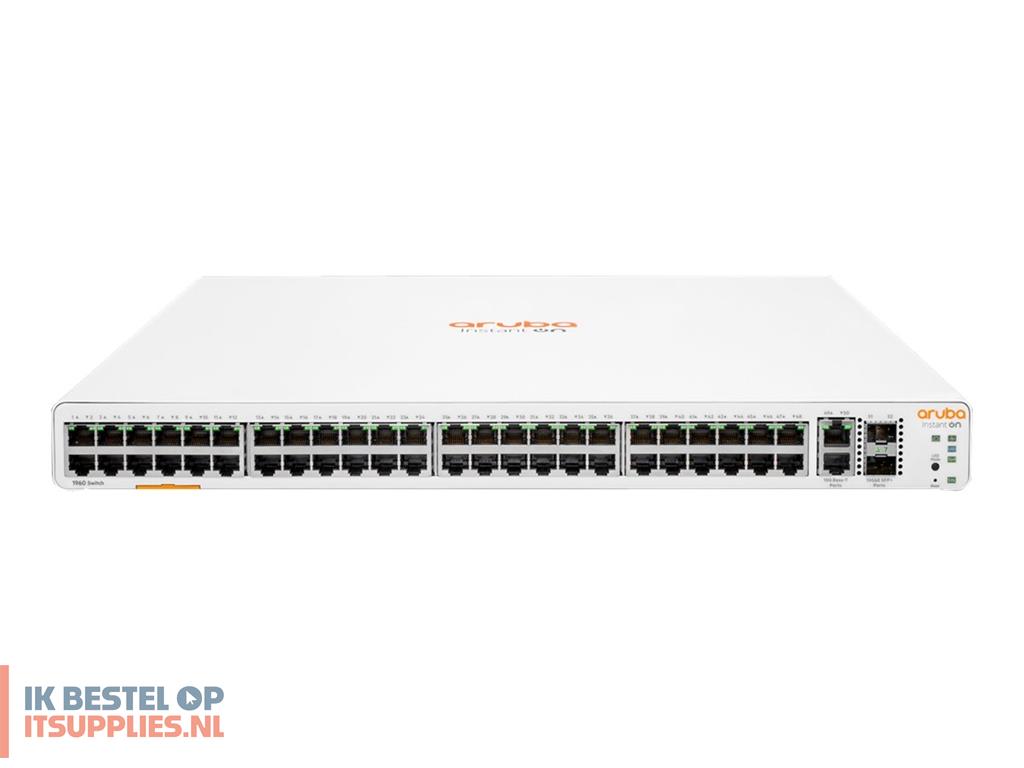

Switch - 48 ports - L2+ - smart - stackable
Enclosure Type
Desktop, rack-mountable
Ports
48 x 10/100/1000 + 2 x 10 Gigabit SFP+ + 2 x 10 Gigabit Ethernet
Performance
Latency (100 Mbps): 4.4 µs ¦ Latency (1 Gbps): 2.2 µs ¦ Latency (10 Gbps): 1.1 µs ¦ Throughput: 131 Mpps ¦ Switching capacity: 176 Gbps
Capacity
IPv4 routing table entries: 32 ¦ IPv6 routing table entries: 32
MAC Address Table Size
16000 entries
Jumbo Frame Support
9216 bytes
Routing Protocol
IGMPv2, IGMP, IGMPv3, static IPv4 routing, MLDv2, MLD
Remote Management Protocol
SNMP 1, RMON, SNMP 3, SNMP 2c, HTTP, HTTPS, TFTP, SCP, RADIUS
Authentication Method
RADIUS
Features
Flow control, auto-negotiation, VLAN support, auto-uplink (auto MDI/MDI-X), IGMP snooping, DoS attack prevention, port mirroring, Broadcast Storm Control, IPv6 support, Multicast Storm Control, Unicast Storm Control, firmware upgradable, SNTP support, Spanning Tree Protocol (STP) support, Rapid Spanning Tree Protocol (RSTP) support, Multiple Spanning Tree Protocol (MSTP) support, DHCP snooping, Access Control List (ACL) support, Quality of Service (QoS), DHCP server, MLD snooping, Trusted Platform Module (TPM), Cable Diagnostics Function, DHCP relay, Port Security, port based access control, DHCP client, Energy Efficient Ethernet, Class of Service (CoS), cloud managed, IP source guard, Internet Control Message Protocol (ICMP), dual image support, DNS client, LLDP-MED, ingress rate limiting, protected ports, BPDU Filter, Weighted Round Robin (WRR), ARP filtering, DSCP prioritisation, auto voice VLAN, loop protection
Compliant Standards
IEEE 802.3u, IEEE 802.3i, IEEE 802.3z, IEEE 802.1D, IEEE 802.1Q, IEEE 802.3ab, IEEE 802.1p, IEEE 802.3x, IEEE 802.3ad (LACP), IEEE 802.1w, IEEE 802.1x, IEEE 802.3ae, IEEE 802.3ac, IEEE 802.1s, IEEE 802.1t, IEEE 802.1ab (LLDP), IEEE 802.3an, IEEE 802.3az
Status Indicators
Port status
Expansion / Connectivity
Interfaces
48 x Gigabit LAN RJ-45 ¦ 2 x 10Gbit LAN SFP+ ¦ 2 x 10Gbit LAN RJ-45
Power
Power Device
Internal power supply
Voltage Required
AC 100-240 V (50/60 Hz)
Power Consumption Operational
80 Watt
Miscellaneous
Rack Mounting Kit
Included
Compliant Standards
Plug and Play, EN 61000-3-2, IEC 61000-3-2, IEC 61000-3-3, EN 61000-3-3, ICES-003 Class A, VCCI Class A, FCC CFR47 Part 15 A, CNS 13438 Class A, KN35, IEC/EN 61000-4-3, IEC/EN 61000-4-4, IEC/EN 61000-4-5, IEC/EN 61000-4-6, IEC/EN 61000-4-8, AS/NZS CISPR 32 Class A, KN32 Class A, EN 62368-1, IEC 62368-1, IEC/EN 61000-4-11, IEC/EN 61000-4-2, EN 62368-1 Second Edition, UL 62368-1 Second Edition, IEC/EN60950-1:2006 +A11:2009 +A1:2010 +A12:2011 +A2:2013, CAN/CSA-C22.2 No. 62368-1, UL 62368-1, EN 55035, EN 55032/CISPR 32 Class A, CISPR 35, IEC 62368-1 Second Edition, UL 62368-1 Third Edition, EN 62368-1 Third Edition, IEC 62368-1 Third Edition, CAN/CSA C22.2 No. 62368-1 Third Edition, CAN/CSA C22.2 No. 62368-1 Second Edition, EN/IEC 60825-1:2014 Class 4
Localisation
English / Europe
Dimensions & Weight
Manufacturer Warranty
Service & Support
Limited warranty - lifetime ¦ Technical support - live chat - lifetime ¦ Technical support - phone consulting - 90 days from date of purchase
Environmental Parameters
Min Operating Temperature
0 °C
Max Operating Temperature
40 °C
Humidity Range Operating
15 - 95% (non-condensing)
Min Storage Temperature
-40 °C
Max Storage Temperature
70 °C
Humidity Range Storage
15 - 95% (non-condensing)
