General
Device Type

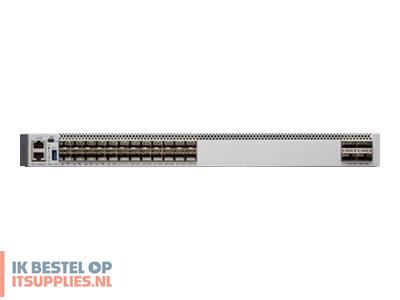

Switch - 24 ports - L3 - Managed
Enclosure Type
Rack-mountable 1U
Subtype
25 Gigabit Ethernet
Ports
24 x 25 Gigabit SFP28
Performance
Switching capacity (full duplex): 1.6 Tbps
Forwarding rate: 1 Bpps
Capacity
Routing table entries: 80000
Indirect IPv4 routes: 212000
Host IPv4 routes: 90000
Indirect IPv6 routes: 212000
Host IPv6 routes: 90000
Multicast scale: 32000
QoS ACL scale: 16000
Security ACL scale: 270000
FNF entries: 96000
VLAN IDs: 4000
Switched virtual interfaces (SVIs): 4000
MAC Address Table Size
64K entries
Jumbo Frame Support
9198 bytes
Routing Protocol
OSPF, IS-IS, RIP-2, BGP, EIGRP, IGMP, VRRP, PIM-SM, PIM-SSM, MSDP, RIPng, MPLS
Remote Management Protocol
SNMP 1, RMON 1, RMON 2, SNMP, SNMP 3, SNMP 2c, TFTP, NETCONF, RESTCONF
Encryption Algorithm
256-bit AES
Features
DHCP support, NAT support, PAT support, trunking, MPLS support, NSF, SSO, CBWFQ, WRED, STP support, VRRP support, ACL support, QoS, NSR, RSPAN, HSRP support, VRF, MLD, FNF, MSDP, MACsec support, CoPP, integrated Wireshark, VLAN Double Tagging (Q-in-Q), EoMPLS, H-VPLS, Private VLAN, L3VPN support, CoAP support, SPAN
Compliant Standards
IEEE 802.3, IEEE 802.3u, IEEE 802.1D, IEEE 802.1Q, IEEE 802.3ab, IEEE 802.1p, IEEE 802.3x, IEEE 802.3ad (LACP), IEEE 802.1w, IEEE 802.1x, IEEE 802.3ae, IEEE 802.1s, IEEE 802.1ae, IEEE 802.3ba
Expansion / Connectivity
Interfaces
24 x 25Gbit LAN SFP28
4 x 100Gbit LAN
2 x USB 3.0
Power
Power Device
Internal power supply - hot-plug
Power Redundancy Scheme
1+1
Voltage Required
AC 120/230 V (50 - 60 Hz)
Miscellaneous
Compliant Standards
CISPR 22 Class A, CISPR 24, EN 61000-3-2, EN 61000-3-3, EN55024, EN50082-1, EN 61000-6-1, EN 61000-4-4, EN 61000-4-2, EN 61000-4-3, EN 61000-4-6, CCC, ICES-003 Class A, EN 61000-4-5, UL 60950-1, IEC 60950-1, EN 60950-1, RoHS, AS/NZS 3548 Class A, BSMI Class A, VCCI Class A, EN 55022 Class A, FCC CFR47 Part 15 A, EN 300 386, TVCN 7317, VCCI V-3/2009 Class A, CAN/CSA-C22.2 No. 60950-1
Software / System Requirements
Software Included
Cisco IOS XE 16.8.1
Dimensions & Weight
Manufacturer Warranty
Service & Support
Limited warranty - replacement - lifetime - response time: next business day
Technical support - consulting - 90 days
Environmental Parameters
Min Operating Temperature
0 °C
Max Operating Temperature
40 °C
Humidity Range Operating
5 - 90% (non-condensing)
Min Storage Temperature
-20 °C
Max Storage Temperature
65 °C
Humidity Range Storage
5 - 95% (non-condensing)
