General
Device Type

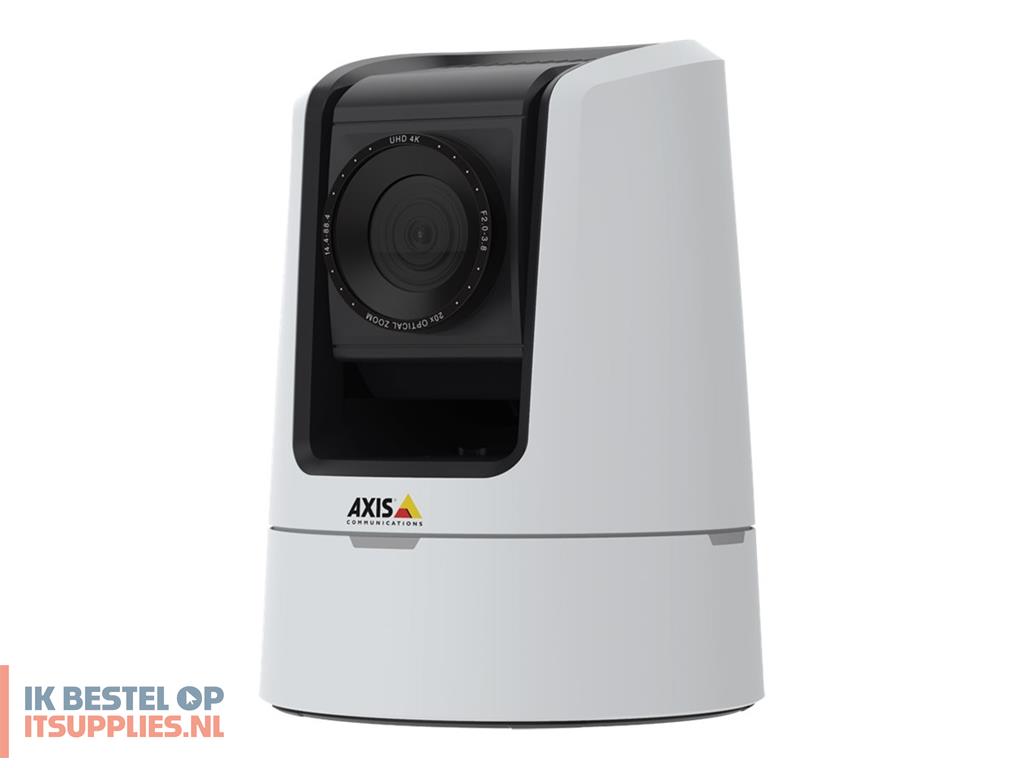

Network surveillance camera
Audio Support
Yes: two-way audio capability
Audio Formats
PCM, G.726, ADPCM, AAC-LC, LPCM, G.711, OPUS
Camera Mount Type
Wall mount, ceiling mount
Connectivity Technology
Wired
Camera
Type
Colour - Day&Night - pan / tilt / zoom
Digital Video Format
MPEG-4, MJPEG, H.264, AVC, HEVC, H.265
Max Digital Video Resolution
3840 x 2160
Video Modes
720p, 1080i, 1080p, 2160p, 4K
Minimum Illumination
0.7 lux - colour - F2.0 - 30 IRE ¦ 1 lux - colour - F2.0 - 50 IRE ¦ 0.06 lux - B&W - F2.0 - 30 IRE ¦ 0.1 lux - B&W - F2.0 - 50 IRE
Video Capture
3840 x 2160 @ 25 fps ¦ 1920 x 1080 @ 50 fps ¦ 1280 x 720 @ 50 fps
Features
Backlight Compensation (BLC), sharpness control, white balance, progressive scanning, saturation control, brightness control, Wide Dynamic Range (WDR), Video Motion Detector (VMD), Highlight Compensation (HLC), 256 preset positions, Electronic Image Stabilizer (EIS), notification picture to E-mail, notification picture to FTP, password protection, Variable Bitrate (VBR), Audio Detection, noise reduction, Zipstream technology, ONVIF (Profile S) support, ONVIF (Profile G) support, Pixel Counter Support, infrared-cut filter, IP address filtering, auto tracking 2.0, multiple stream encoding, signed firmware, secure boot, Adaptive Bitrate (ABR), day/night threshold, defogging, text overlay, 180° image rotation
Image Sensor
Lens Construction
Focal Length
4.4 mm - 88.4 mm
Focus Adjustment
Automatic
Horizontal Field of View (degree)
4.1 - 70.2
Vertical Field of View (degree)
2.3 - 39.5
Panning
Range (degree)
-170 to +170
Speed (degree/sec)
Up to 100
Tilting
Speed (degree/sec)
Up to 90
Interfaces
Video
HDMI, HD-SDI, 3G-SDI
Network Interface
Ethernet 10Base-T/100Base-TX/1000Base-T
Network Protocols
DDNS, DHCP, DNS, FTP, HTTP, NTP, SMTP, TCP/IP, UDP/IP, ARP, ICMP, SNMP 1, SNMP 2c, SNMP 3, SOCKS, RTSP, RTP, HTTPS, UPnP, TLS, IPv4, IPv6, Bonjour, RTCP, SMB, IGMP, SSH, SSL, QOS, CIFS, EAP, SFTP, SIP, LLDP, MQTT
Control Interface
RS-232, VISCA
Expansion / Connectivity
Ports
LAN - RJ-45 ¦ 3G-SDI output - BNC ¦ HDMI output ¦ Audio line-in/microphone - 3 pin XLR x 2 ¦ Audio line-in/microphone - 3.5 mm jack ¦ Audio line out - 3.5 mm jack ¦ Serial RS-232 (Visca)
Supported Memory Cards
microSD Card, microSDHC Card, microSDXC Card
Miscellaneous
Included Accessories
Ceiling mount kits, wall mount kit, terminal block connectors
Compliant Standards
CISPR 24, EN 61000-3-2, EN 61000-3-3, EN55024, EN 61000-6-1, EMC, EN 61000-6-2, IEC 60068-2-27, IEC 60068-2-6, FCC Part 15 B Class A, IEC 60068-2-1, IEC 60068-2-2, IEC 60068-2-14, IEC 60068-2-78, KC, VCCI Class A, RCM, KN35, AS/NZS CISPR 32 Class A, KN32 Class A, EN 55032 Class A, CAN/CSA-C22.2 No. 62368-1, EN 55035, CISPR 35, IEC/EN/UL 62368-1, IEEE 802.1x, CAD ICES-3(A)/NMB3(A), NIST SP500-267
Power
Power Requirements
DC 11 - 13 V
Power Device
Power adapter - external 17.5 Watt
Software / System Requirements
Software Included
Windows decoder 1-user licence, Camstreamer (3 months trial)
Manufacturer Warranty
Service & Support
Limited warranty - 5 years
Environmental Parameters
Min Operating Temperature
0 °C
Max Operating Temperature
40 °C
Relative Humidity (operating)
10 - 85% (non-condensing)
