General
Device Type
Video conferencing kit
Kit Content

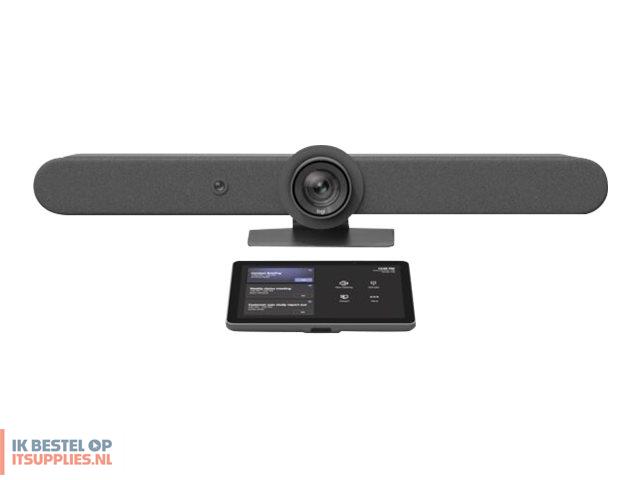

Logitech Rally Bar, Logitech Tap IP
Localisation
United Kingdom, Hong Kong
Video Input
Type
Digital video camera (colour) - desktop
Interface Type
SuperSpeed USB 3.0
Digital Video Capture Resolution
3840 x 2160
Video Modes
480p, 720p, 1080p, 4K, 1440p, 900p
Camera Mechanical Design
Pan / tilt / zoom
Features
RightLight technology, RightSound technology, Wide Dynamic Range (WDR), Artificial Intelligence, Acoustic Echo Cancellation (AEC), 30 fps, microphone noise suppression technology, 52.2° field of view (vertical), 82.1° field of view (horizontal), 90° diagonal field of view, RightSight technology, Voice Activity Detector (VAD), -25° / +25° pan, -15° / +15° tilt
Audio Input
Type
6-microphone array - integrated
Microphone Operation Mode
Beamforming
Frequency Response
90 - 16000 Hz
Audio Output
Total Harmonic Distortion (THD)
<2%
Input Device
Type
Remote control, 10.1" touchscreen
Connectivity Technology
Wireless, wired
Networking
Connectivity Technology
Wireless, wired
Data Link Protocol
Bluetooth, IEEE 802.11b, IEEE 802.11a, IEEE 802.11g, IEEE 802.11n, IEEE 802.11ac
Expansion / Connectivity
Interfaces
1 x network - Ethernet 10Base-T/100Base-TX/1000Base-T - RJ-45
2 x display / video - HDMI output
3 x SuperSpeed USB 3.0 - 9 pin USB Type A
1 x USB-C 3.0 - 24 pin USB-C
1 x display / video - HDMI input
Miscellaneous
Included Accessories
Remote control, lens cap, VESA mounting kit
Software Certification
Zoom Certified, RingCentral Certified, Certified for Microsoft Teams
Compliant Standards
Plug and Play
Power
Power Device
Power adapter - external
Voltage Required
AC 100-240 V
Manufacturer Warranty
Service & Support
Limited warranty - 2 years
Environmental Parameters
Min Operating Temperature
0 °C
Max Operating Temperature
40 °C
Humidity Range Operating
10 - 95%
