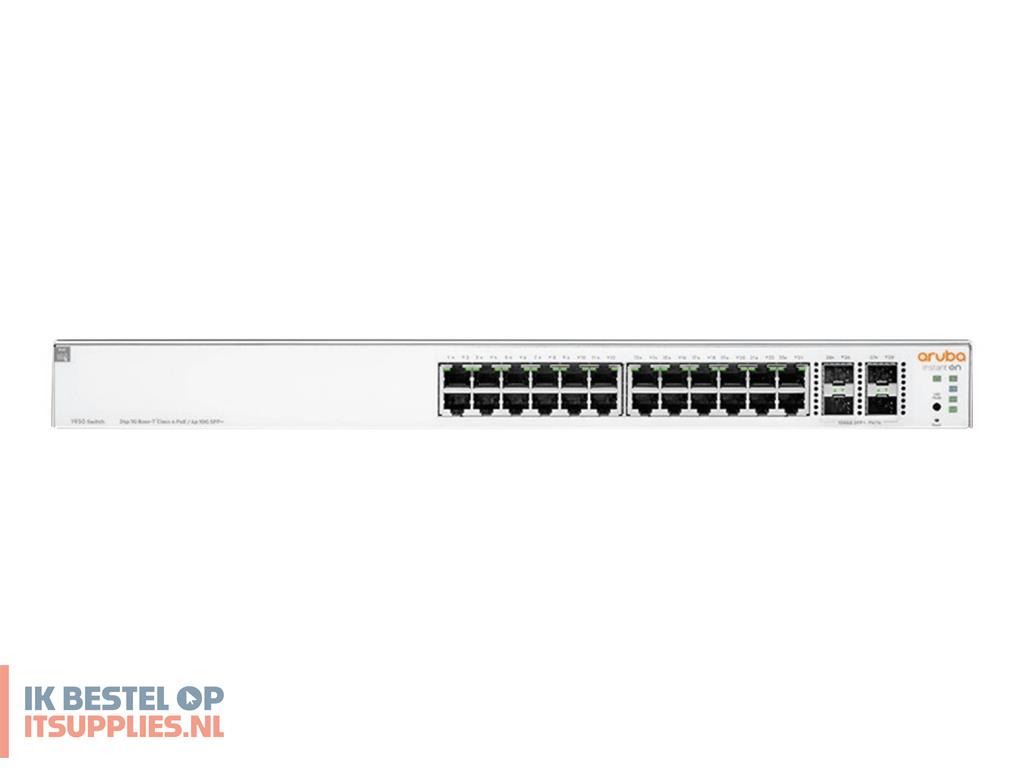

HPE Networking Instant On 1930 24G Class4 PoE 4SFP/SFP+ 195W Switch

Switch - 28 ports - L3 - Managed

Rack-mountable 1U

Gigabit Ethernet

24 x 10/100/1000 (PoE) + 4 x 1 Gigabit / 10 Gigabit SFP+

PoE

195 W

Switching capacity: 128 Gbps
Throughput: 95.23 Mpps
Latency (1 Gbps): 2.4 µs
Latency (10 Gbps): 1.3 µs

Link aggregation ports: 8
IPv4 routes (static): 32
VLANs supported: 256
Access Control Entries (ACEs) per ACL: 480
Packet buffer size: 1.5 MB

16000 entries

9216 bytes

Static IP routing

SNMP 1, RMON, SNMP 3, SNMP 2c, HTTP, HTTPS, TFTP, RADIUS

SSL

RADIUS

Flow control, DHCP support, ARP support, VLAN support, auto-uplink (auto MDI/MDI-X), IGMP snooping, IPv6 support, half duplex mode, full duplex mode, STP support, MSTP support, ACL support, QoS, TPM, LLDP support, LACP, Energy Efficient Ethernet, CoS, BPDU Filter, PoE Class 4

IEEE 802.3, IEEE 802.3u, IEEE 802.1D, IEEE 802.1Q, IEEE 802.3ab, IEEE 802.1p, IEEE 802.3af, IEEE 802.3x, IEEE 802.3ad (LACP), IEEE 802.1w, IEEE 802.1x, IEEE 802.1s, IEEE 802.1ab (LLDP), IEEE 802.3at, IEEE 802.3az, IEEE 802.2af

1 x ARM Cortex-A9: 800 MHz

512 MB SDRAM

256 MB

Port status, power, PoE

24 x 10/100/1000 Base-T RJ-45 PoE - 195 W
4 x 1/10Gbit LAN SFP+

Internal power supply

AC 120/230 V (50/60 Hz)

234 Watt

76 years

VCCI, CISPR 24, EN 61000-3-2, IEC 61000-3-2, IEC 61000-3-3, IEC 61000-4-11, IEC 61000-4-2, IEC 61000-4-3, IEC 61000-4-4, IEC 61000-4-5, IEC 61000-4-6, IEC 61000-4-8, EN 61000-3-3, UL 60950-1, IEC 60950-1, EN 60950-1, CSA C22.2 No. 60950-1, EN 60825-1, CNS 13438, EN 55024:2010, FCC CFR47 Part 15 A, ICES-003 issue 6 Class A, UL 62368-1 Second Edition, CISPR 32 Class A, EN 62368-1:2014, EN 55032:2015+AC:2016, CISPR 35, SSL, IEC 62368-1: 2014 Second Edition, EN 55035:2017

English / Europe

44.25 cm

26.47 cm

4.39 cm

3.5 kg

Limited warranty - lifetime

0 °C

40 °C

15 - 95% (40 °C)

-40 °C

70 °C

15 - 95% (60 °C)
