General
Device Type

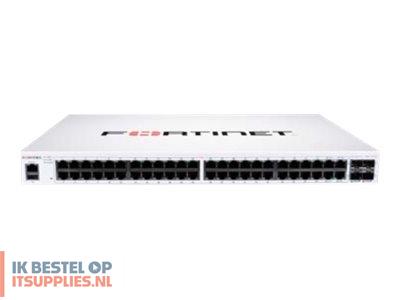

Switch - 48 ports - Managed
Enclosure Type
Side to back airflow rack-mountable 1U
Ports
48 x 10/100/1000 (PoE+) + 4 x 10 Gigabit SFP+
Power Over Ethernet (PoE)
PoE+
Performance
Switching capacity: 176 Gbps
Packets per second: 260 Mbps
Latency: < 1 µs
Capacity
VLANs supported: 4000
Link aggregation groups: 8
Total link aggregation groups: 128
Buffer capacity (MB): 2
MAC Address Table Size
32K entries
Routing Protocol
IGMP, policy-based routing (PBR), MSTP, RSTP, STP
Remote Management Protocol
SNMP 1, Telnet, SNMP 3, SNMP 2c, HTTP, HTTPS, TFTP, SSH, CLI, DHCP, IPv4, IPv6, RSTP, RADIUS
Authentication Method
Secure Shell (SSH), RADIUS
Features
Flow control, firewall protection, auto-negotiation, auto-uplink (auto MDI/MDI-X), IGMP snooping, Syslog support, port mirroring, SNTP support, DHCP snooping, STP Root Guard, LACP support, LLDP support, 802.1x authentication, Storm Control, Link Aggregation, MIB II, AVC, LLDP-MED, VLAN Tagging, IP forwarding support, MAB, BPDU Guard, LAG
Compliant Standards
IEEE 802.3, IEEE 802.3u, IEEE 802.3z, IEEE 802.1D, IEEE 802.1Q, IEEE 802.3ab, IEEE 802.3af, IEEE 802.3x, IEEE 802.3ad (LACP), IEEE 802.1w, IEEE 802.1x, IEEE 802.3ae, IEEE 802.1s, IEEE 802.1ab (LLDP), IEEE 802.3at, IEEE 802.1AX
Expansion / Connectivity
Interfaces
48 x 1000Base-T RJ-45 PoE+
4 x 10GBase-X SFP+
1 x serial (console) RJ-45
Power
Power Device
Internal power supply
Voltage Required
AC 120/230 V (50 - 60 Hz)
Power Consumption Operational
893.5 Watt
Miscellaneous
Compliant Standards
UL, VCCI, BSMI, CB, FCC, RoHS2, RCM
Dimensions & Weight
Manufacturer Warranty
Service & Support
Limited warranty - lifetime
Environmental Parameters
Min Operating Temperature
0 °C
Max Operating Temperature
45 °C
Humidity Range Operating
10 - 90% (non-condensing)
Min Storage Temperature
-20 °C
Max Storage Temperature
70 °C
