General
Device Type

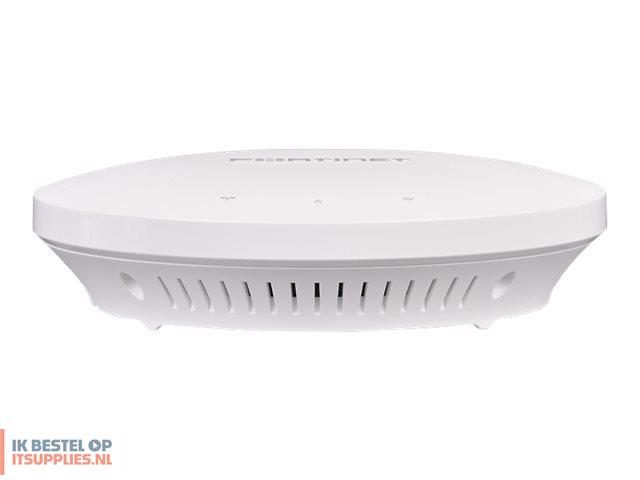

Radio access point
Networking
Connectivity Technology
Wireless
Line Coding Format
64 QAM, 256 QAM
Data Link Protocol
IEEE 802.11b, IEEE 802.11a, IEEE 802.11g, IEEE 802.11n, IEEE 802.11ac Wave 2
Frequency Band
2.4 GHz, 5 GHz
Performance
Maximum throughput (2.4 GHz): 300 Mbps
Maximum throughput (5 GHz): 867 Mbps
Capacity
Maximum number of configured SSIDs: 16
Concurrent users per radio: 512
Features
URL filtering, wall mountable, Mesh networking, WPA2 encryption, Maximum Ratio Combining (MRC), Low Density Parity Check (LDPC), Transmit Beam-forming (TxBF) ready, ceiling mountable, Maximum Likelihood Demodulation (MLD), Captive Portal, security lock slot (cable lock sold separately), WPA encryption, packet aggregation A-MPDU, packet aggregation A-MSDU, T-Rail mountable, 2x2 MU-MIMO technology
Encryption Algorithm
TLS, PEAP, TTLS, WPA, WPA2, WEP
Authentication Method
MS-CHAP v.2, Extensible Authentication Protocol (EAP), EAP-FAST, EAP-SIM, EAP-AKA
Compliant Standards
IEEE 802.11b, IEEE 802.11a, IEEE 802.3af, IEEE 802.11d, IEEE 802.11g, IEEE 802.1x, IEEE 802.11i, IEEE 802.11h, IEEE 802.11e, IEEE 802.11n, IEEE 802.11j, IEEE 802.3az, IEEE 802.11ac Wave 2
Aerial
Expansion / Connectivity
Interfaces
1 x 1000Base-T (PoE) - RJ-45
1 x USB - Type A
1 x management (RS-232) - RJ-45
Miscellaneous
Included Accessories
Wall mounting kit, ceiling mounting kit, T-Rail mounting kit
Compliant Standards
ETSI, UL 2043, RoHS, LVD
Power
Power Over Ethernet (PoE) Supported
PoE
Power Device
External power adapter
Voltage Required
AC 120/230 V (50/60 Hz)
Power Consumption Operational
10.25 Watt
Dimensions & Weight (Shipping)
Manufacturer Warranty
Service & Support
Limited warranty - lifetime
Environmental Parameters
Min Operating Temperature
-20 °C
Max Operating Temperature
50 °C
Humidity Range Operating
5 - 90% (non-condensing)
