General
Device Type

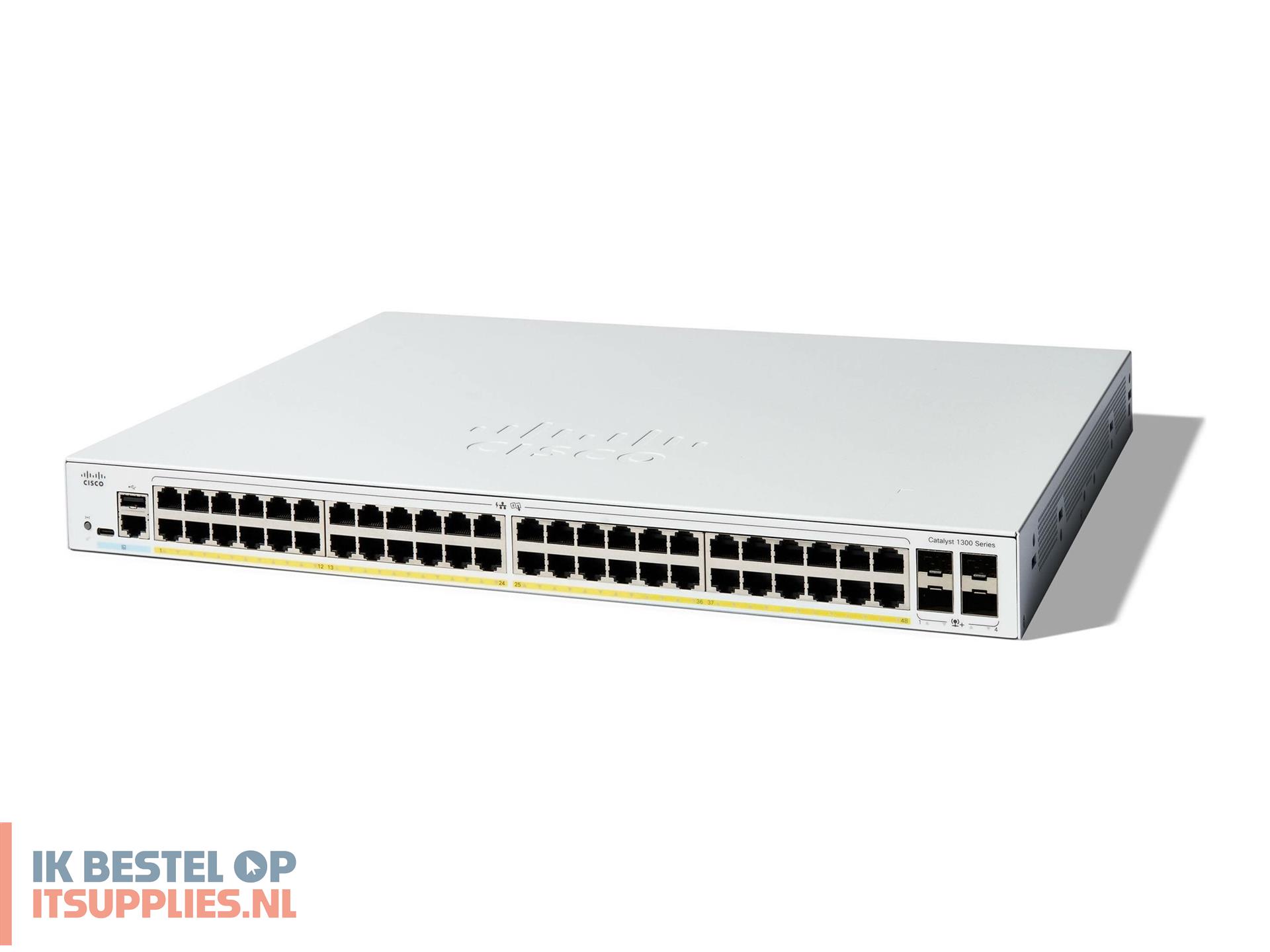

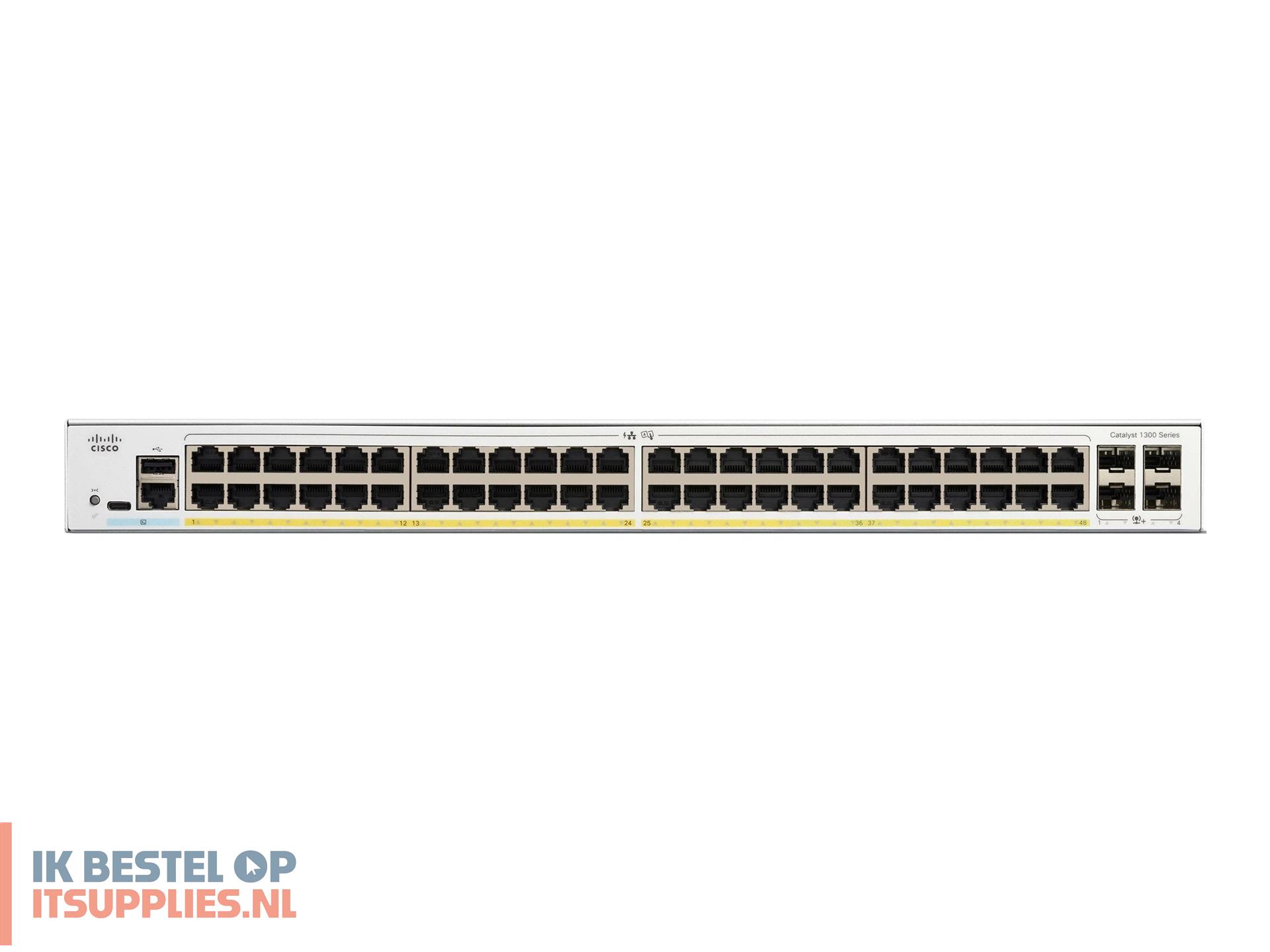

Switch - 48 ports - L3 - Managed - stackable
Enclosure Type
Rack-mountable
Ports
48 x 10/100/1000 (PoE+) + 4 x 10 Gigabit SFP+
Power Over Ethernet (PoE)
PoE+
Performance
Forwarding rate (64-byte packets): 130.94 Mpps
Switching capacity: 176 Gbps
Capacity
MSTP instances: 8
RPVST+ instances: 126
Link aggregation groups: 8
Link aggregation ports: 8
VLAN IDs: 4093
IGMP multicast groups: 2000
IPv4 routes (static): up to 990
IPv4 interfaces: 128
ACL rules: 1024
Priority queues: 8
Packet buffer size: 3 MB
MAC Address Table Size
16000 entries
Jumbo Frame Support
9000 bytes
Routing Protocol
RIP-2, IGMPv2, IGMP, static IP routing, IGMPv3, policy-based routing (PBR), MLDv2, MLD, CIDR, MSTP, RSTP, STP, Bounjour
Remote Management Protocol
SNMP, RMON, Telnet, SNMP 3, SNMP 2c, HTTP, HTTPS, TFTP, SSH, SSH-2, CLI, SCP, ICMP, DHCP, RADIUS, Syslog
Encryption Algorithm
MD5, SSL
Authentication Method
RADIUS, TACACS+
Features
BOOTP support, VLAN support, IGMP snooping, DoS attack prevention, port mirroring, DiffServ support, Broadcast Storm Control, High Availability, Multicast Storm Control, Unicast Storm Control, sFlow, DHCP snooping, DHCP server, MLD snooping, reset button, STP Root Guard, DHCP relay, Port Security, DHCP client, IGMP proxy, Protocol-based VLANs support, Storm Control, MLD proxy, IP source guard, ARP inspection, MAC address authentication, IGMP querier, VLAN mirroring, DNS client, 1 fan, VLAN management, LLDP-MED, Private VLAN, RA guard, Guest VLAN, STP loop guard, EEE, DSCP based CoS, MAC based VLAN, loopback detection, Telnet server, Telnet client, Unknown Storm Control, BPDU Guard, router advertisement guard, DHCPv6 guard, Q-in-Q tunnelling, IPv4 and IPv6 dual stack, Zero-Touch Deployment, cable length detection, Web authentication, PoE scheduling, trustworthy systems, layer 3 routing, dynamic routing, ACL support, eco-friendly button, Address Resolution Protocol, Auto Surveillance VLAN, CPE VLAN, TCP congestion, iSCSI traffic optimisation, chip guard, boot integrity, persistent PoE, time-based port operation, MSTP support, QoS, PVST+, LACP, GARP, GVRP, ToS, SCP, SCT, SSD, UDP, DoS protection, WRR, HoL Blocking Prevention, LAG, RPVST+, DAD, LLDP, path MTU discovery, STP support, CLI management, ATP, FHS, IPMB, NDP, RSTP, PVE, MVR, TPID, UDLD, DAI, Cisco NG PnP Protocol, RSPAN
Compliant Standards
IEEE 802.3, IEEE 802.3u, IEEE 802.3z, IEEE 802.1D, IEEE 802.1Q, IEEE 802.3ab, IEEE 802.1p, IEEE 802.3af, IEEE 802.3x, IEEE 802.3ad (LACP), IEEE 802.1w, IEEE 802.1x, IEEE 802.3ae, IEEE 802.1s, IEEE 802.3an, IEEE 802.3at, IEEE 802.3az
Status Indicators
System, PoE, link/activity/speed
Expansion / Connectivity
Interfaces
48 x 10/100/1000 Base-T (PoE+) RJ-45
4 x 10GBase-X SFP+
1 x console RJ-45
1 x USB-C console
Power
Power Device
Internal power supply
Voltage Required
AC 100-240 V (50 - 60 Hz)
Miscellaneous
Included Accessories
Mounting kit, pointer card
Compliant Standards
Plug and Play, FCC CFR47 Part 15, WEEE, CSA 22.2, RFC1213, RFC1493, RFC1757, RFC2674, RFC768, RFC791, RFC1157, RFC2460, RFC2011, RFC1643, RFC2012, RFC2013, UL 62368, RFC783, RFC792, RFC2863, RFC793, RFC826, RFC854, RFC2131, RFC2132, RFC1907, RFC1215, RFC2233, RFC2665, RFC951, RFC1542, RFC2618, RFC4443, RFC1981, RFC4861, RFC4862, RFC4291, RFC813, RFC879, RFC896, RFC855, RFC856, RFC858, RFC894, RFC919, RFC920, RFC922, RFC950, RFC1042, RFC1071, RFC1123, RFC1141, RFC1155, RFC1286, RFC1350, RFC1442, RFC1451, RFC1533, RFC1541, RFC1573, RFC1624, RFC1700, RFC1867, RFC2030, RFC2576, RFC2616, RFC2666, RFC2737, RFC2819, RFC3164, RFC3176, RFC3411, RFC3412, RFC3413, RFC3414, RFC3415, RFC3416, RFC4330, RFC4007, RFC3484, RFC5214, RFC4293, RFC3595
Dimensions & Weight
Manufacturer Warranty
Service & Support
Limited warranty - lifetime - response time: next business day
Technical support - consulting - 1 year
Environmental Parameters
Min Operating Temperature
-5 °C
Max Operating Temperature
50 °C
Humidity Range Operating
10 - 90% RH (non-condensing)
Min Storage Temperature
-25 °C
Max Storage Temperature
70 °C
Humidity Range Storage
10 - 90% RH (non-condensing)
