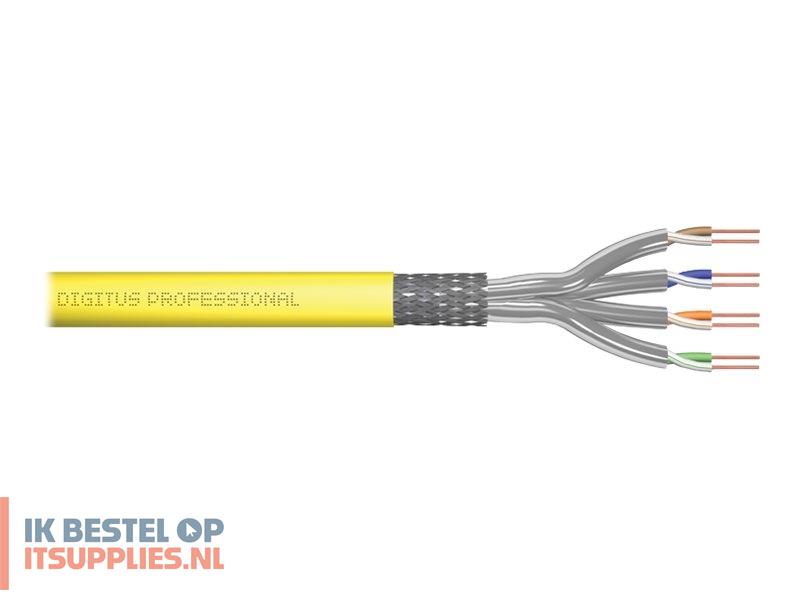

DIGITUS Professional - Bulk cable - 500 m - SFTP - CAT 8.2 - halogen-free, solid - yellow, RAL 1016
Product features
· Physical properties:
· Conductor: Bare copper wire, AWG 22/1
· System(s) of assessment and verification of constancy of performance: System 3
· Insulation: SFS-PE (foamed polyethylene jacket)
· Total number of insulated conductors: 8, twisted into 4 pairs
· Color code: Blue-white, orange-white, green-white, brown-white
· Shielding of the individual pairs: Aluminum-laminated polyester film, covers 100%
· Overall shielding: Tinned copper braiding
· Outer sheath: Dca-s2,d1,a1 according to EN 50575
· Outer sheath thickness (nominal): 0.55 mm nominal
· Outer sheath color: Green
· Mechanical properties:
· Strain relief: 150N max.
· Dynamic bending radius: 8x AD mm min.
· Static bending radius: 4x AD mm min.
· Transport and storage temperature range: -20 °C to +75 °C
· Operating temperature range: -20 °C to +60 °C
· Installation temperature range: 0 °C to +50 °C
· Outer diameter simplex (nominal): 7.9 mm nominal (Dca)
· Weight (kg/km): 65 kg/km
· Electrical properties:
· Impedance: 100±15Ohm @ 1 - 2000MHz
· Capacitance: 99 pF/30m nominal @ 1 KHz
· Capacitance unbalance (pair-earth): 99pF/30m max. @ 1 KHz
· Insulation resistance: 5 GOhm x km min.
· DC resistance: 2.4Ohm/30m max. (4% max. unbalanced resistance)
· Loop resistance: 5.6 Ohm/24m max. (3% max. unbalanced resistance)
· Operating voltage: 72 Vdc max.
· Coupling attenuation: CA-Type 1
· Phase delay: 171 nS/30 m max.
· Time delay: 13.5 nS/130 m max.
· Separation class: "d" according to EN 50174-2
· NVP: 79%
